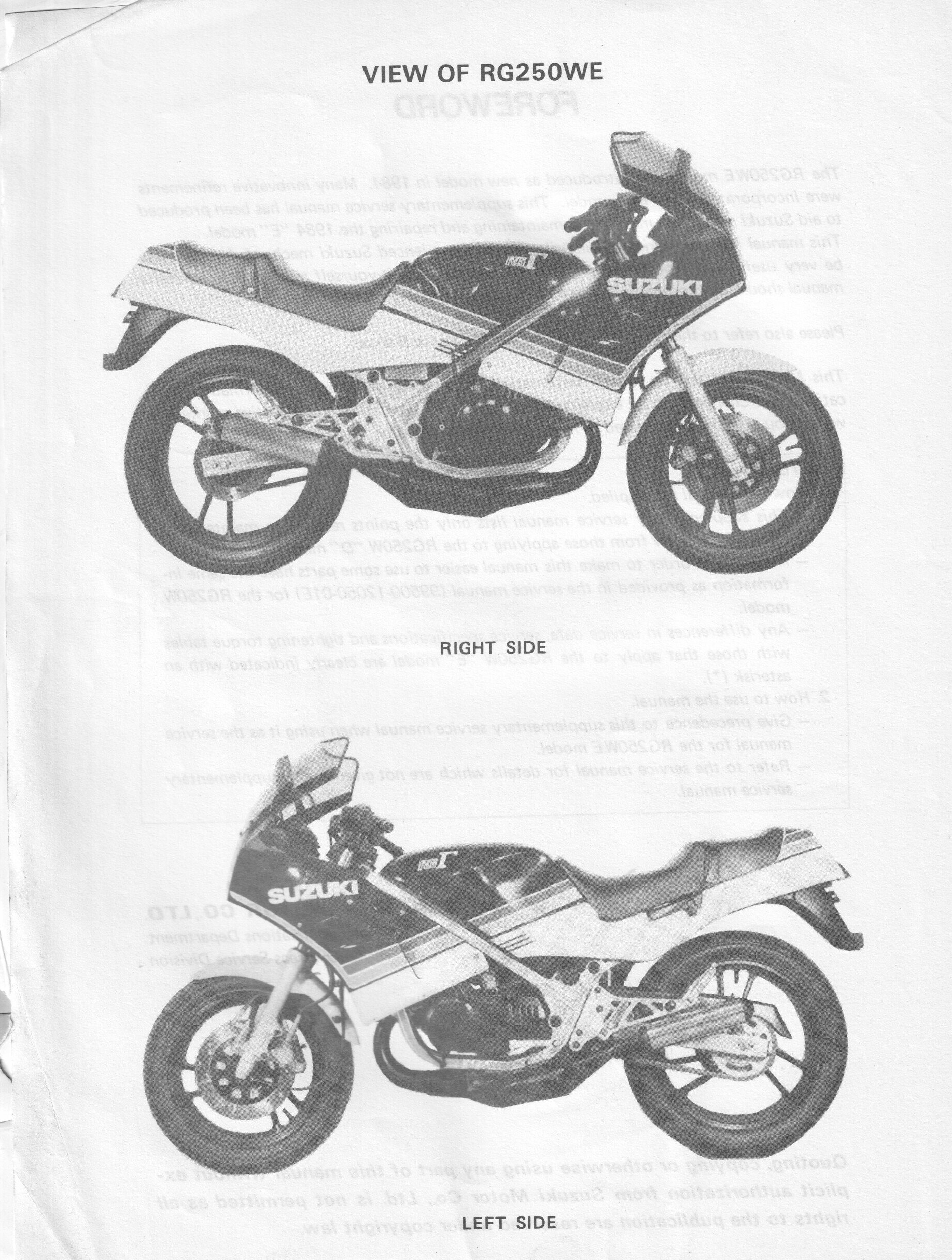

SUZUKI RG 250 WE 1984 MK2

Frame tubes like the MK3

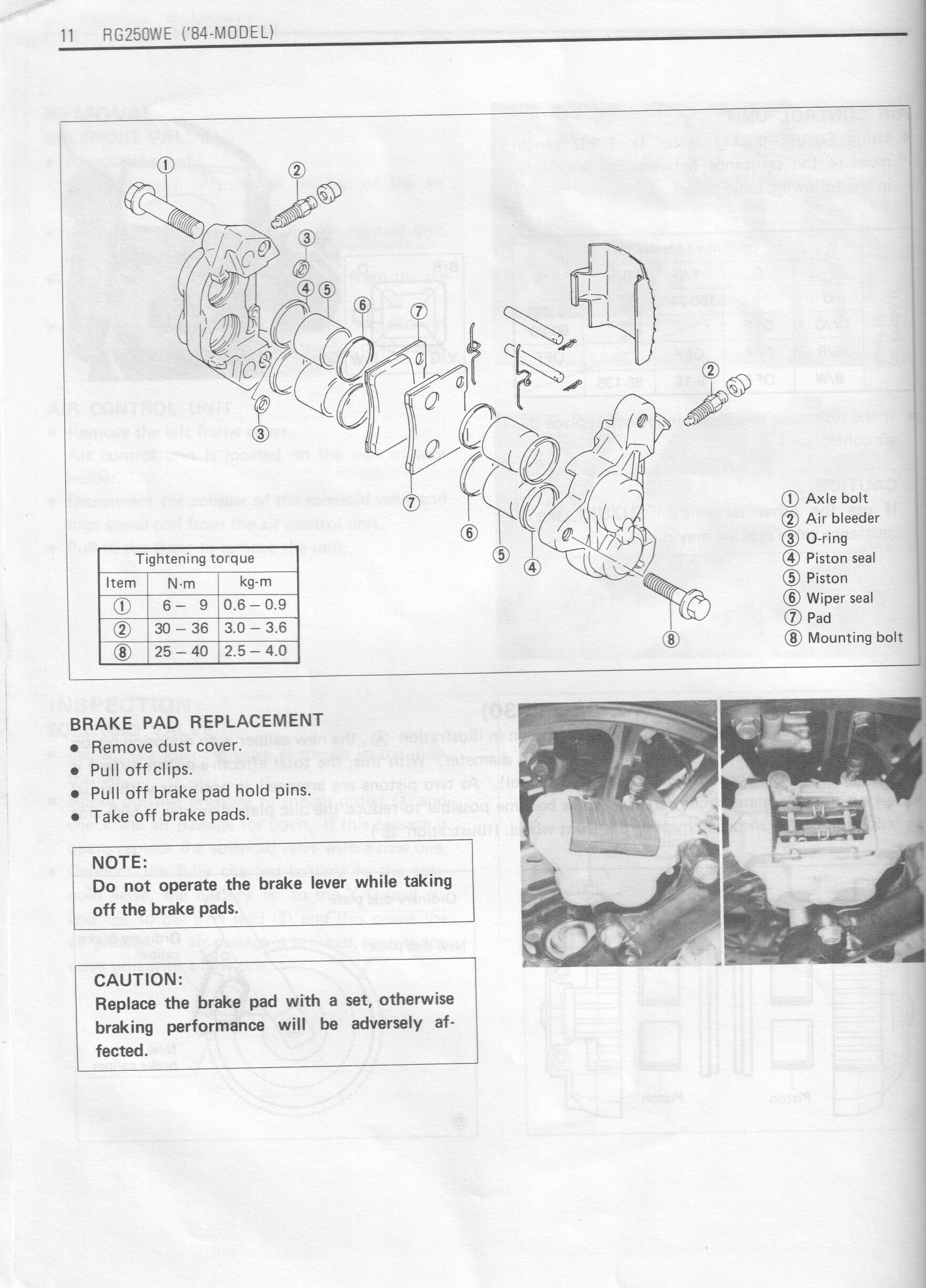

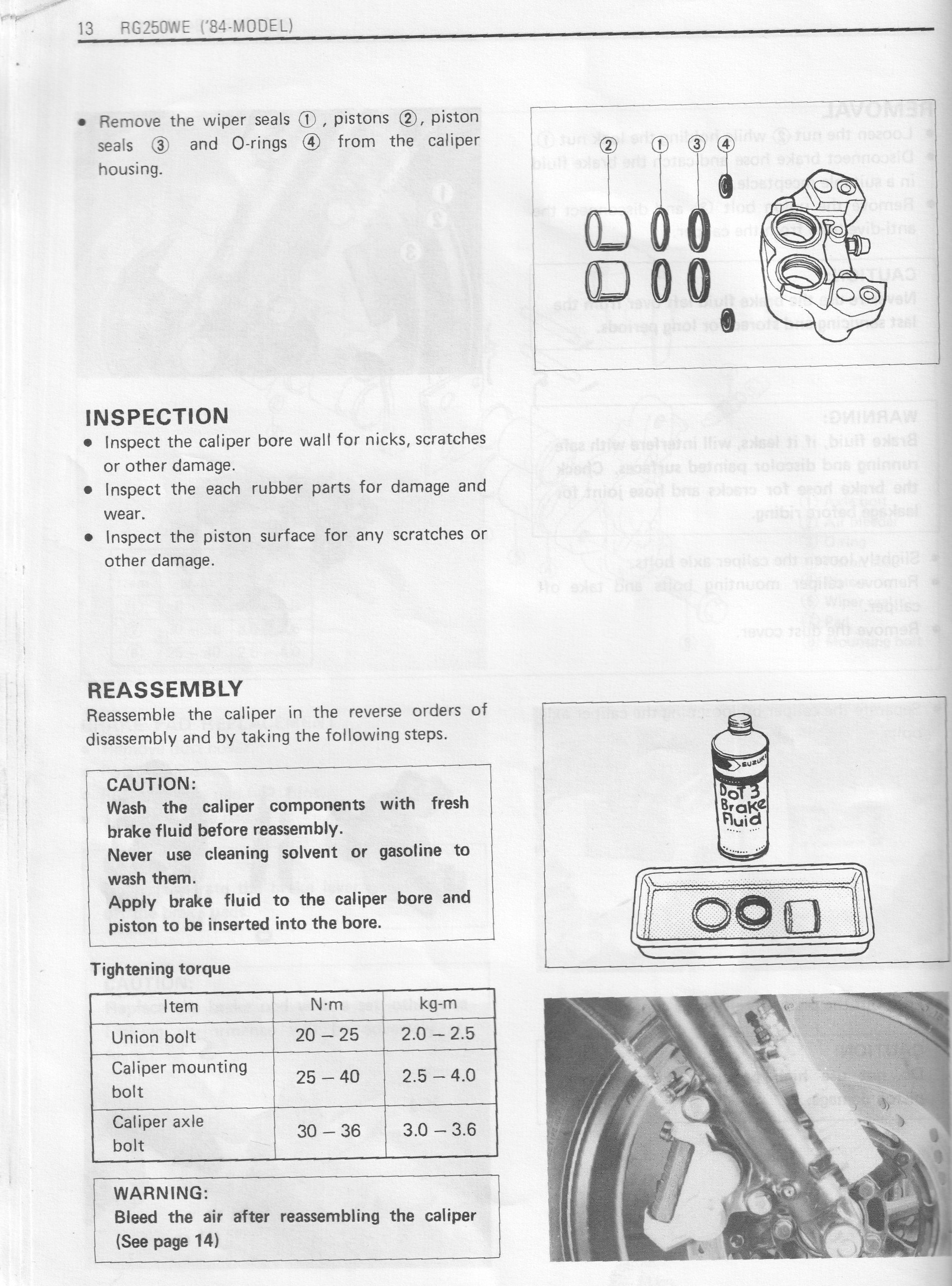

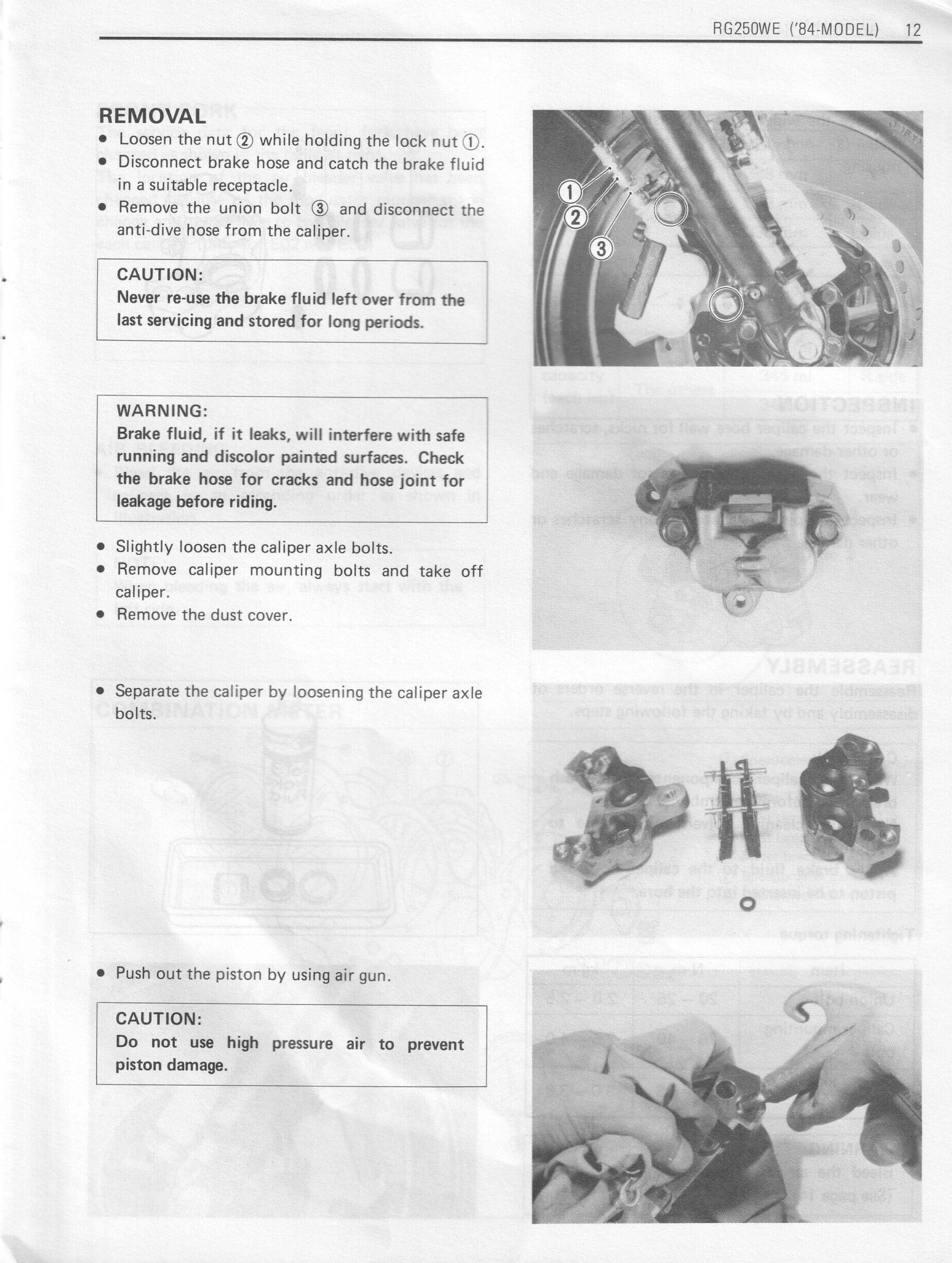

Double piston calipers same as MK3

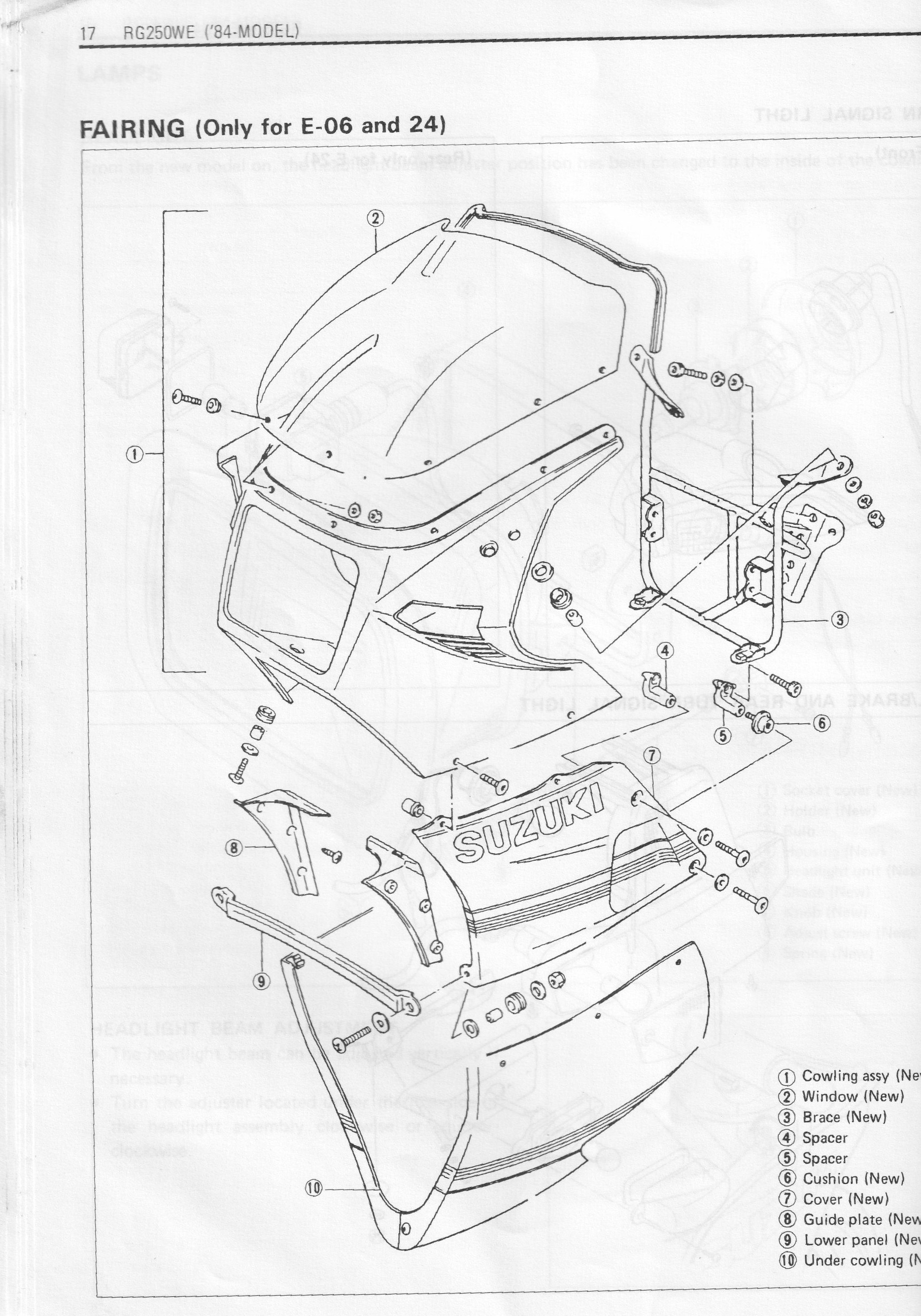

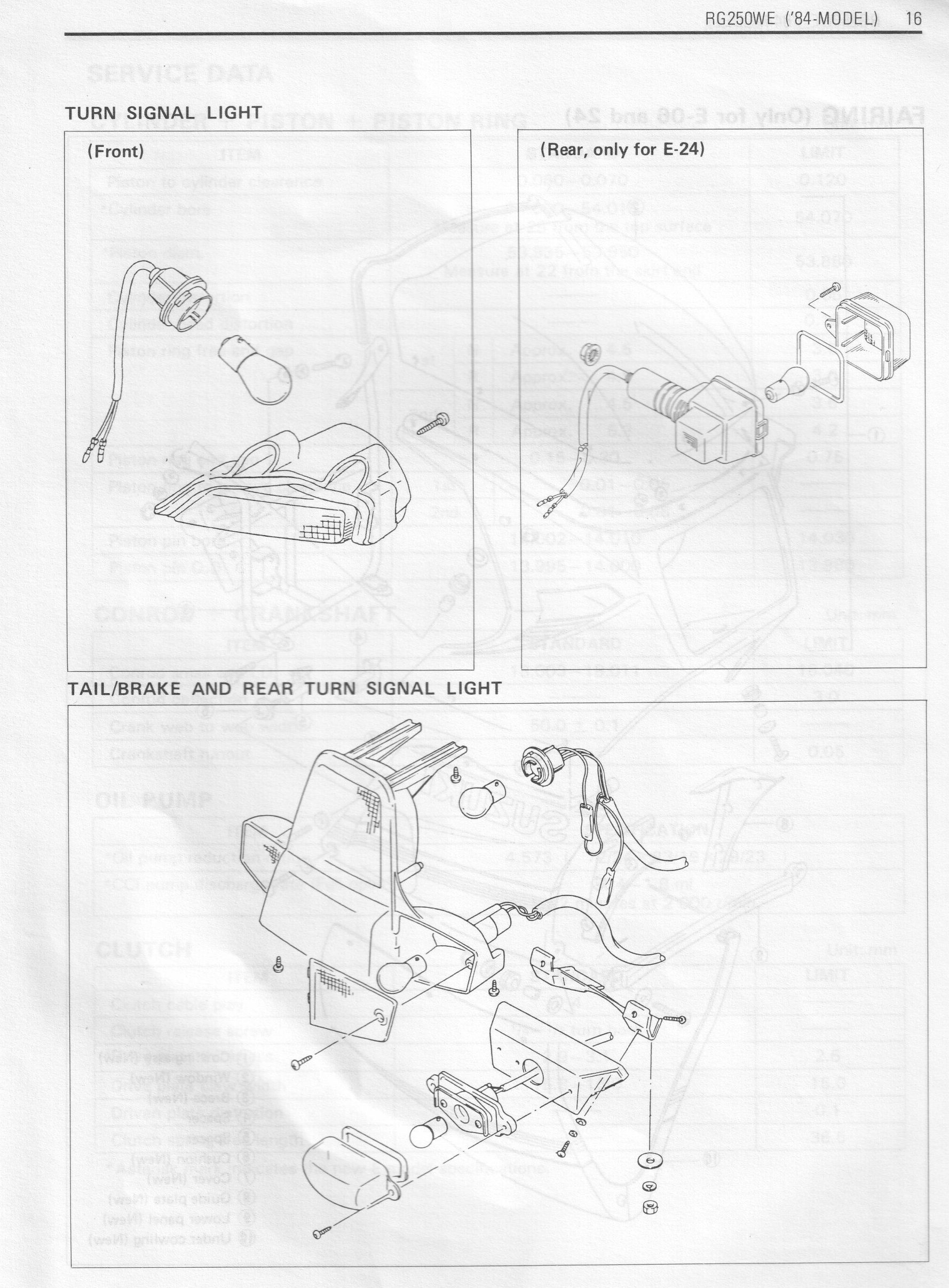

Indicators on edge of top fairing

Idiot lights are click and turn with 1 case beneath for all the lights

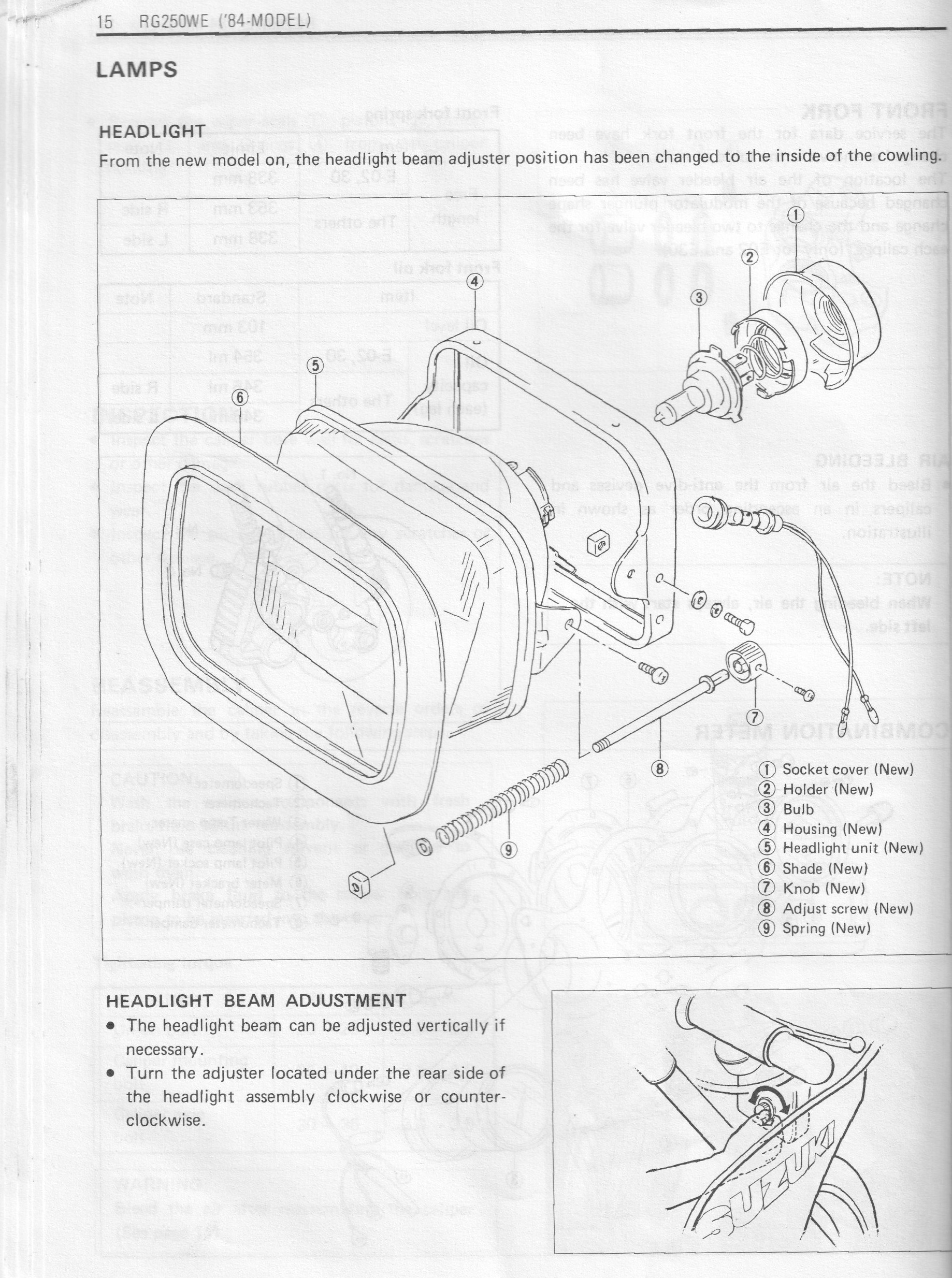

Adjustment for the headlight is on the inside with large knob

Brake pedal not smooth alu

Tailpiece is rounder and the wings are smaller without bolts

Top of tank is blue or Yellow for the HB model

Front footrests are made in one piece without the big blob

Seats are smooth

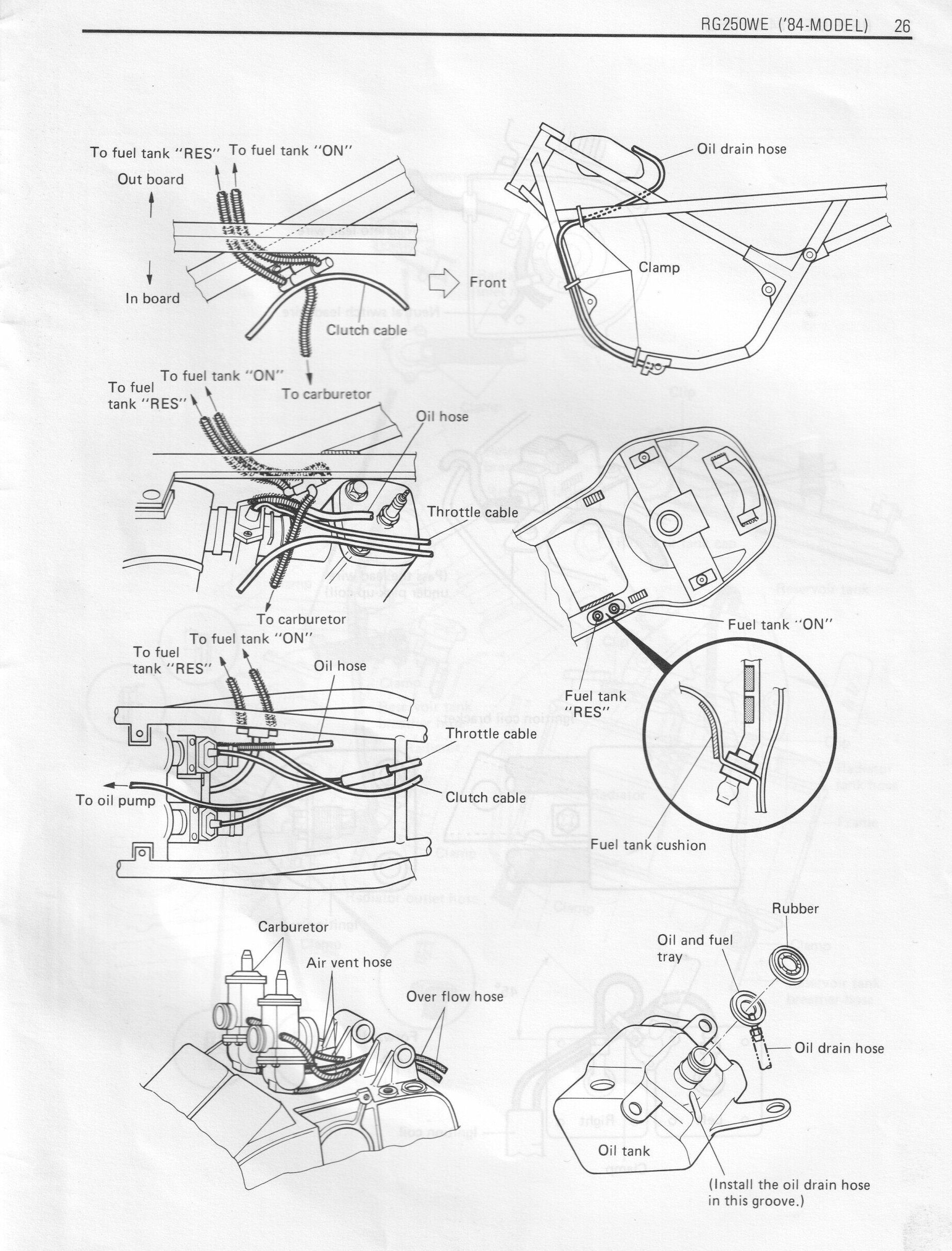

Fuel pipes bolted onto the tank

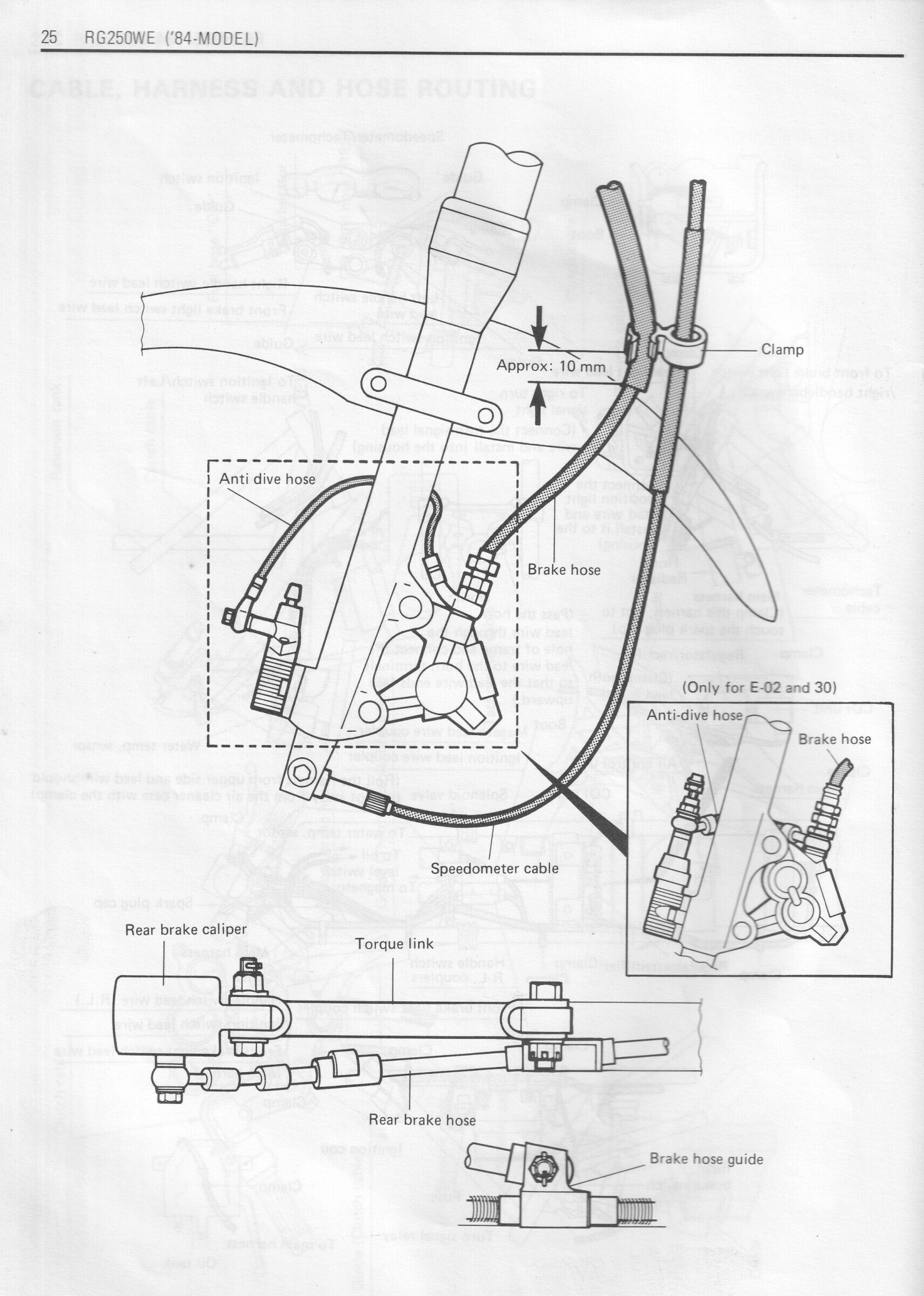

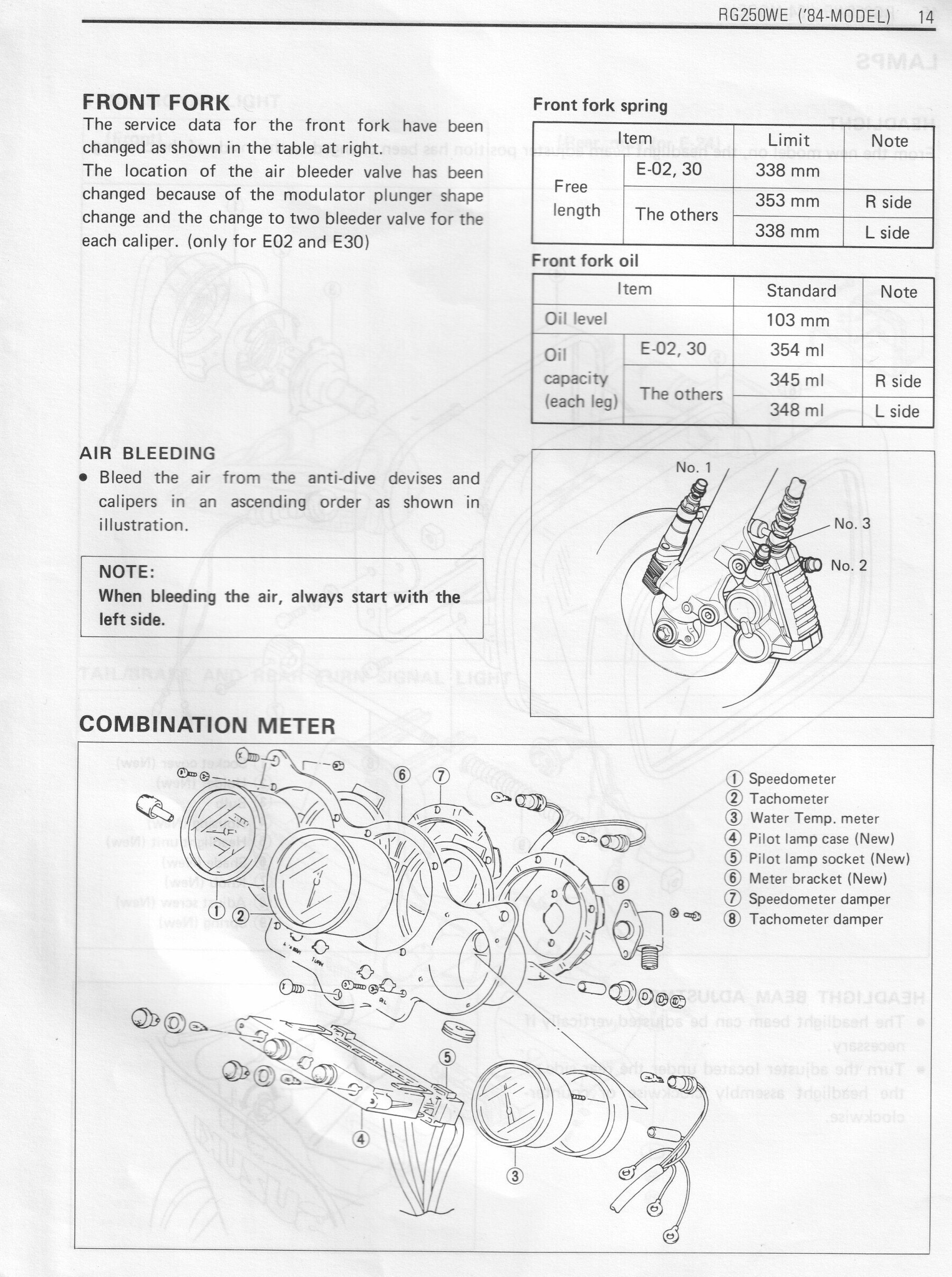

Anti dive unit banjo bolt is on top

Front fender alu bracket on top of fender like the MK3

84 Year code in both wheels

Bigger front axle only used on the MK2

Mirrors with 1 stud and 1 location pin

Swingarm and torque link same shape as frame tubes

To make life easier Suzuki did sell MK2 models with the tail piece of the MK1

But that should be easy to see because of the frame tubes not being smooth
